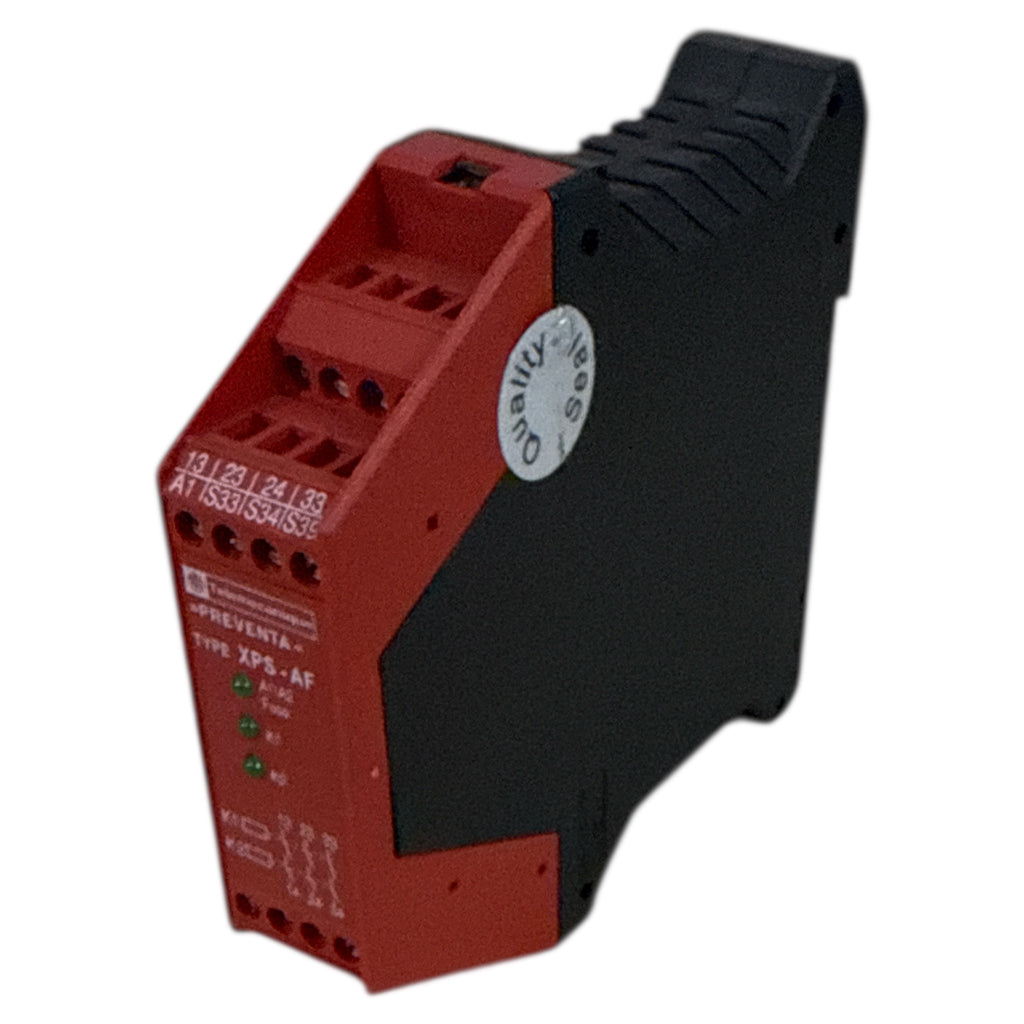

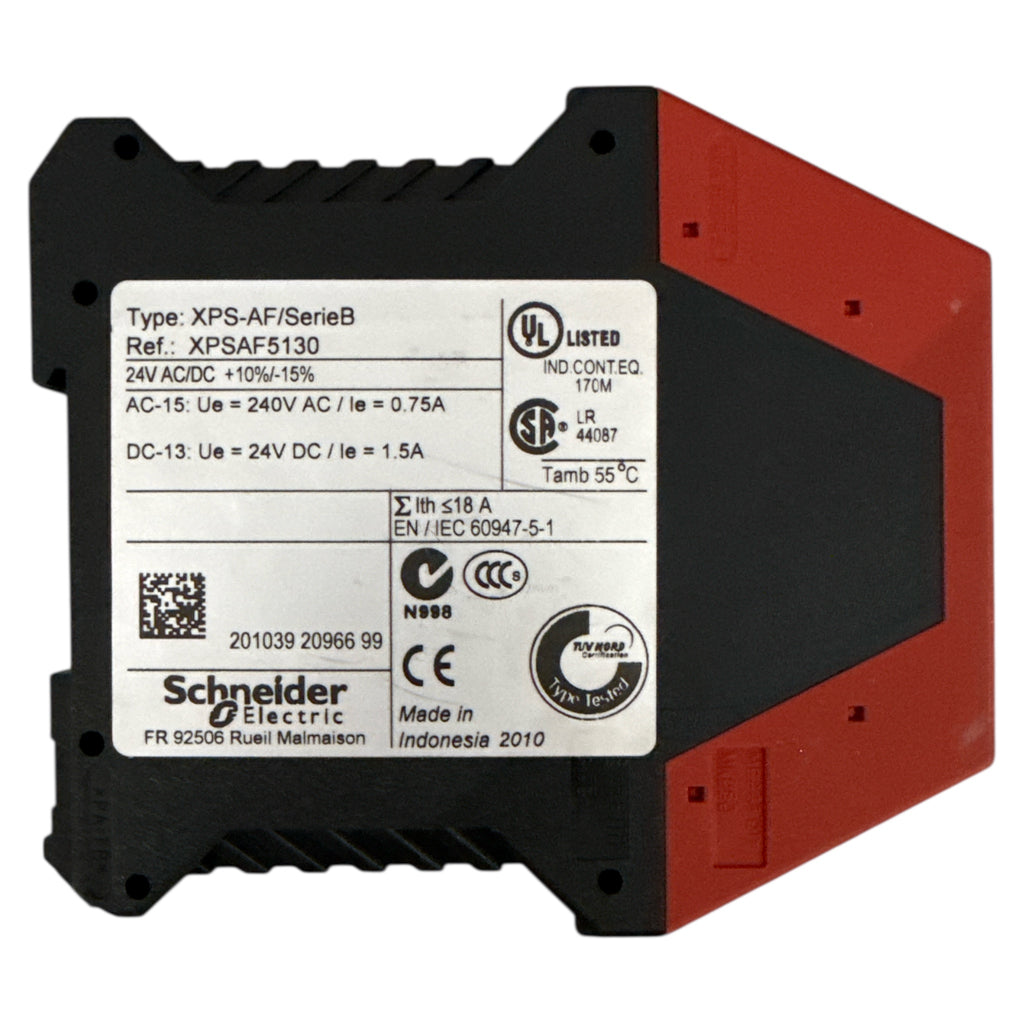

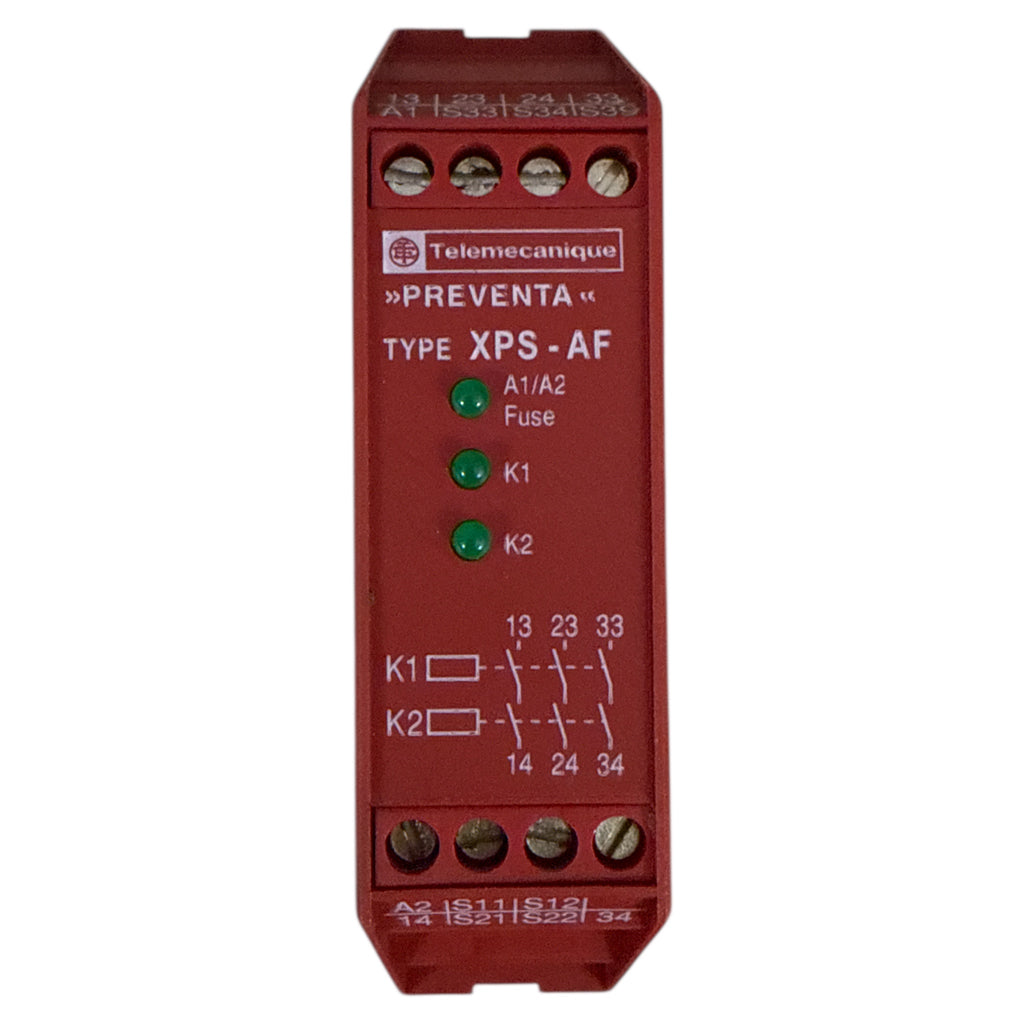

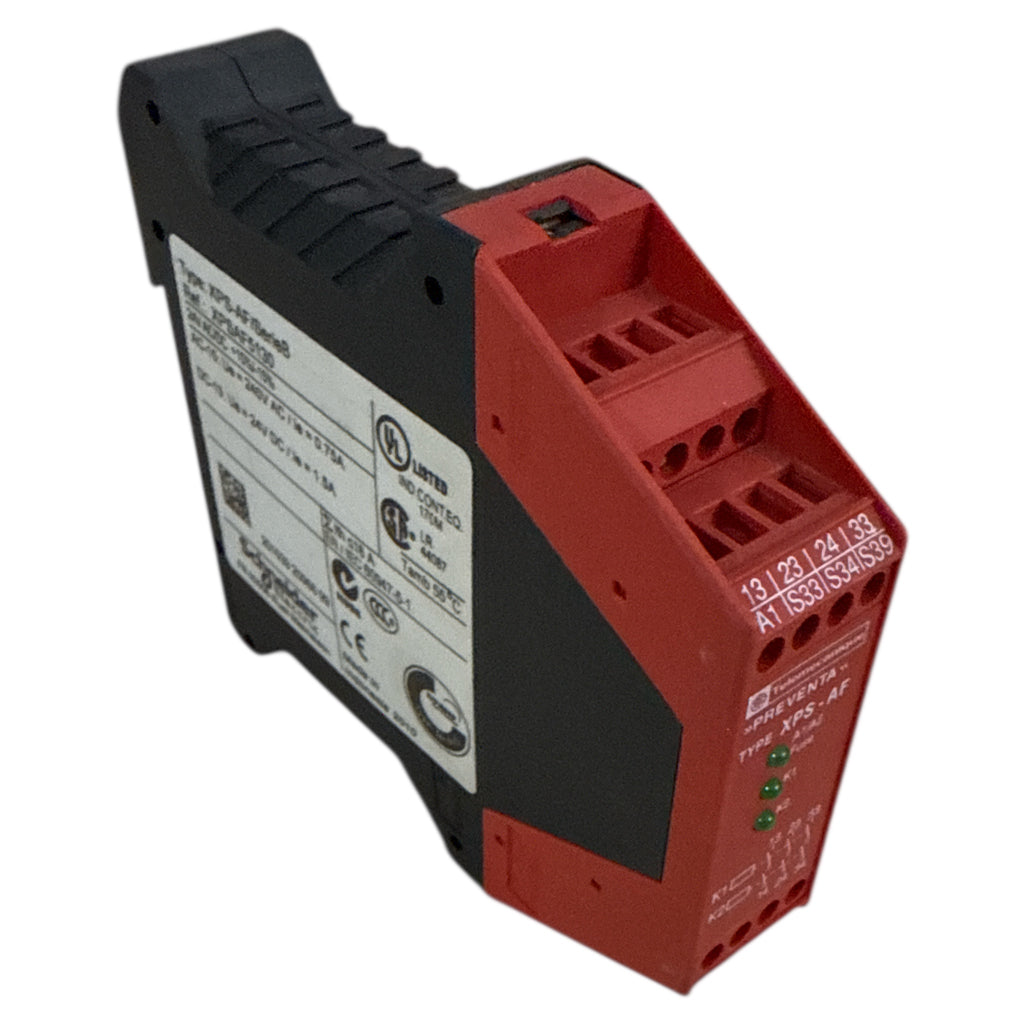

The Schneider Electric XPSAF5130 is a dedicated safety relay module designed for monitoring emergency stop circuits and safety door switches in industrial environments. Compliant with EN 954-1 Category 4 and IEC 62061 SIL 3, it provides the highest level of functional safety for machine control applications. Featuring dual-channel input monitoring, automatic or manual reset options, and three safety output contacts, it ensures reliable and fail-safe operation in demanding production environments.
Key Specifications
| Specification | Value |
|---|---|
| Product Reference | XPSAF5130 |
| Safety Category | EN 954-1 Category 4 |
| Safety Integrity Level | SIL 3 (IEC 62061) |
| Input Channels | Dual-channel |
| Monitored Functions | Emergency stop, safety door switches |
| Safety Output Contacts | 3 NO (normally open) |
| Auxiliary Output | 1 NC (normally closed) |
| Reset Mode | Automatic or manual |
| Supply Voltage | 24V AC/DC |
| Response Time | <20 ms |
| Operating Temperature | 0°C to +55°C |
| Mounting | DIN Rail (35mm) |
| Certifications | CE, TÜV, UL, CSA |
