CPS-900V Vertical Band Sealer

: Unavailable

: Band Sealers

£950.00 £1,250.00

Spare Ink Rolls 36mm x 16mm Black Ink Rolls - Buy Online Now Product Description The CPS-900V is a table-top continuous band sealing machine...

Spare Ink Rolls

36mm x 16mm Black Ink Rolls - Buy Online Now

Product Description

The CPS-900V is a table-top continuous band sealing machine suitable for small and medium sized pre-made pouches and bag.

Features

Variable Speed Control - Up to 80 bags per minute!

It has a variable speed control allowing for up to 12 metres per minute speed (approx. 80 bags per minute for 100mm wide bags).

Digital Temperature Control

This model has a digital temperature controller to set and stabilise the sealing temperatures. It has a range suitable for most film types and thicknesses. It also has built in cooling for thinner materials that might melt or warp at high sealing temperatures.

Adjustable Position & Height

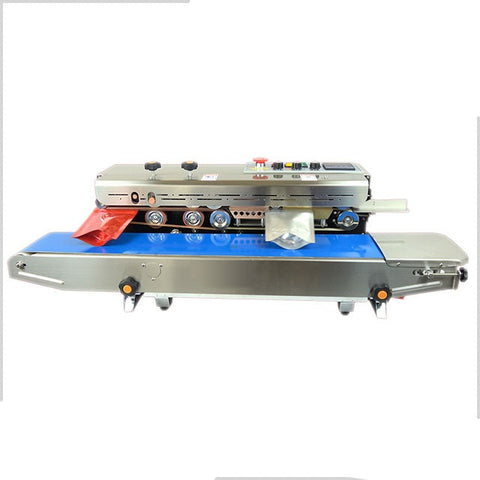

The CPS-900V pouch sealing machine works vertically where as the CPS-900H is setup as a horizontal system.

With the Vertical system, pouches are placed upright on the conveyor rather being laid flat. This is ideal for stand-up pouches and also for pouches containing products that may spill or leak if laid down before sealing.

Both the conveyor and seal head are adjustable giving total flexibility to seal various pouch types and sizes.

Printing

This model has a actuated embossing and ink printing system built in allowing for up to 36 charachters to be printed within the seal area. It has adjustable ink temperature and variable print location control allowing for the print location to be moved horizontally along the seal.



Specification

Minimum Pouch Width 0mm
Maximum Pouch Width Unlimited
Minimum Pouch Height 100mm
Maximum Pouch Height 320mm
Maximum Pouch Thickness 200μ
Seal Width 12mm
Sealing Speed Up to 12m / min
Printing Type Embossing & Ink
Temperature Range 0 - 300 degrees centigrade
Conveyor Length 900mm
Power Supply 220VAC
External Dimensions 1016mm x 457mm x 457mm
Maximum Conveyor Load Weight 5kg
Net Weight 25kg
